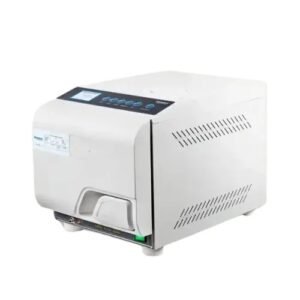

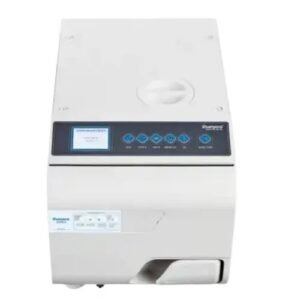

Runyes Rapiclave 5L – Ultra-Fast Class B Autoclave for Implant Sterilization

• Ultra-fast 10-minute sterilization cycle (134°C, Class B Fast)
• Fully EN13060 Class B compliant – suitable for all instruments
• Compact 5L square chamber – maximizes internal capacity
• Intuitive touch-button LCD with program curves and real-time updates
• 3-pulse vacuum system for deep sterilization of hollow/porous items
• Lightweight (26kg) and portable – ideal for small or mobile clinics
• Low water consumption (200ml per cycle) with 1L internal tank
• 8 preset cycles: Fast, Standard, Liquid, B&D, Vacuum Test, etc.
• Built-in safety: auto shut-off, pressure regulation, over-temp protection
• Energy and eco-friendly operation

Technical Specifications – Rapiclave 5L

• Chamber Capacity: 5 Liters – designed for small instrument batches and chairside sterilization.

• Chamber Material: High-grade stainless steel (anti-corrosive, long-lasting, and resistant to high pressure/temperature).

• Sterilization Class: Class B Autoclave with pre-vacuum and post-vacuum cycles for complete air removal and effective sterilization.

• Cycle Options:

  • Fast cycle for quick sterilization (ideal for immediate chairside needs).

  • Standard cycle for routine sterilization.

  • Dry cycle for moisture-free instruments.

• Sterilization Temperature: Adjustable at 121°C and 134°C – suitable for different types of instruments.

• Operating Pressure: Designed to withstand 1.1 to 2.1 bar (safely handles pressure for effective sterilization).

• Vacuum System: High-efficiency vacuum pump to remove air pockets from hollow and wrapped instruments.

• Control System: Digital microprocessor-based controller with programmable options and self-diagnostics.

• Cycle Time: Approx. 15–25 minutes depending on load and cycle type.

• Safety Features:

  • Auto-locking door to prevent accidental opening under pressure.

  • Over-temperature and over-pressure protection.

  • Automatic alarm/error detection in case of malfunction.

• Drying System: Post-vacuum drying ensures instruments come out sterile and dry, ready for immediate use.

• Water System: Uses distilled water for steam generation (separate clean and used water tanks).

• Power Supply: 220V ± 10%, 50Hz – standard Indian power compatibility.

• Dimensions (Approx.): Compact footprint, lightweight design for small clinics (exact size may vary by model).

• Weight: Lightweight, portable unit (approx. 15–20 kg).

• Standards Compliance: CE certified and conforms to international sterilization standards for safety and performance.
