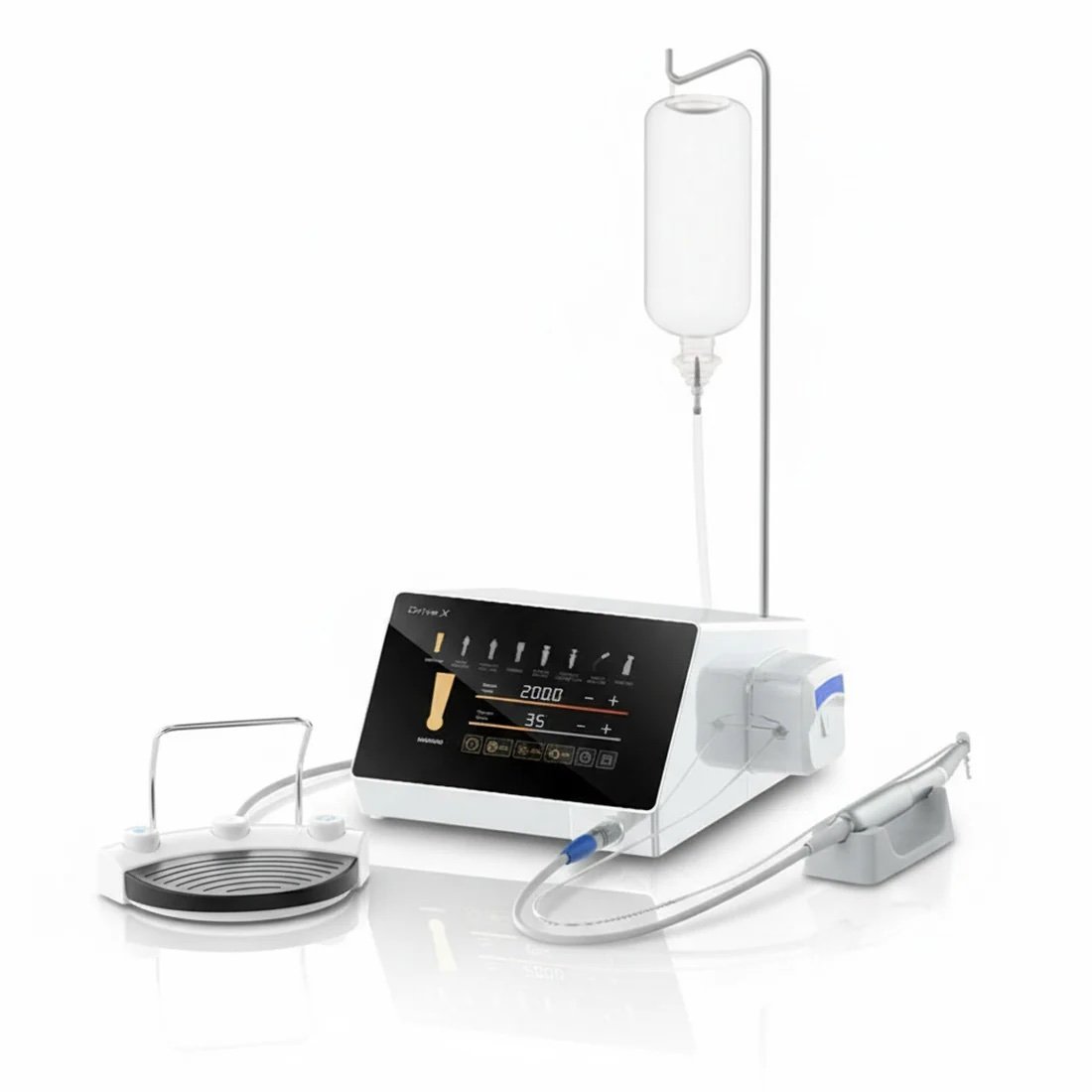

Woodpecker Implant Motor Drive-X

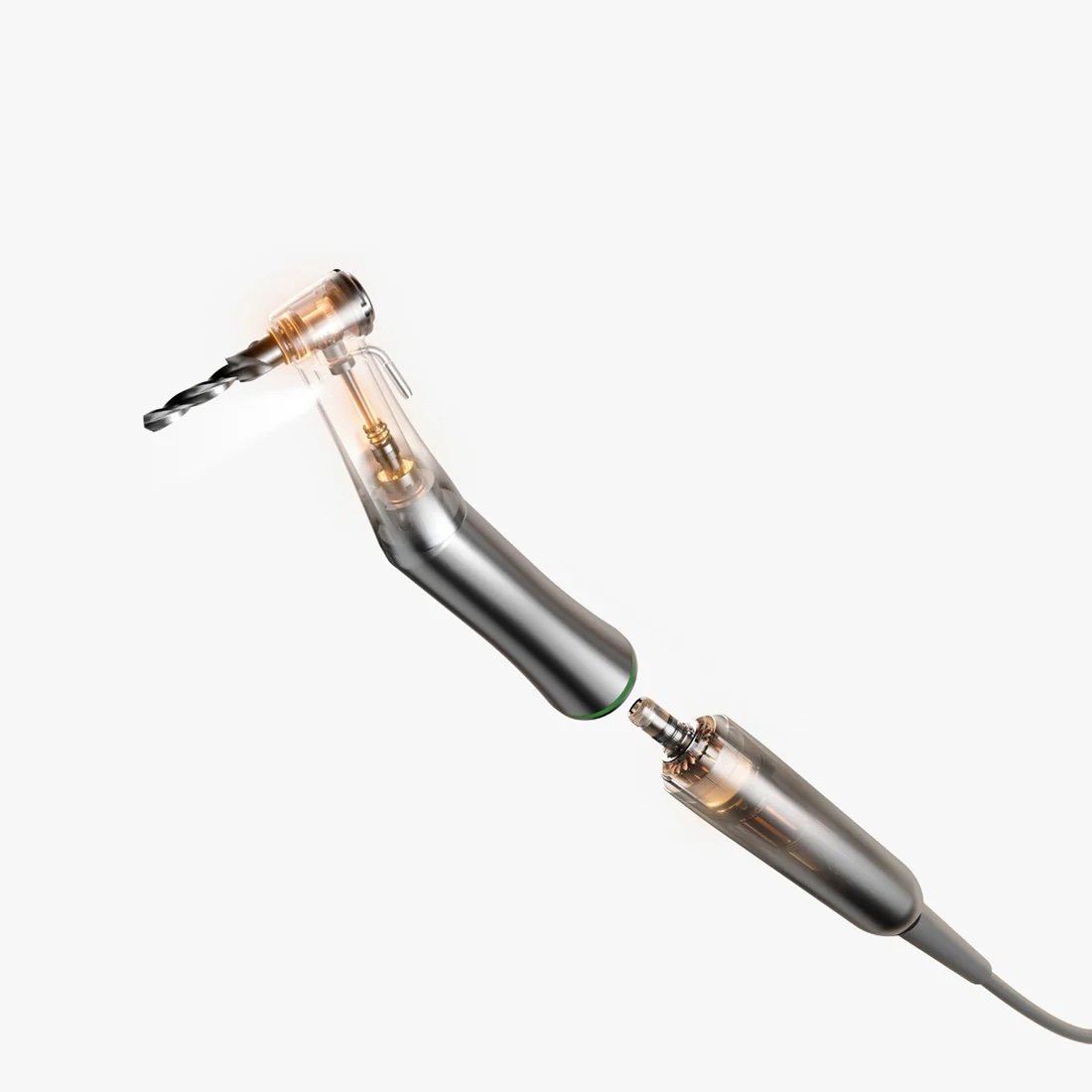

Drive-X implant motor with LED contra angle for precise implantology

Woodpecker Implant Motor Drive-X is a high-performance implant motor system engineered to deliver precision, stability, and comfort during implant procedures. Equipped with an LED contra-angle, the unit ensures enhanced visibility and accuracy throughout surgery. The durable contra-angle features eight high-quality bearings for smooth rotation, reduced vibration, and long-term reliability under frequent clinical use. A powerful domestic motor provides consistent torque control with an output of up to 80 Ncm, supporting confident and controlled implant placement. The large color display offers intuitive operation with preset programs, while advanced functions such as torque maintenance, adjustable LED brightness, delayed light-off, and volume control enhance clinical efficiency. Lightweight, autoclavable components and a hands-free foot pedal make Drive-X a dependable solution for modern implantology.

Features:

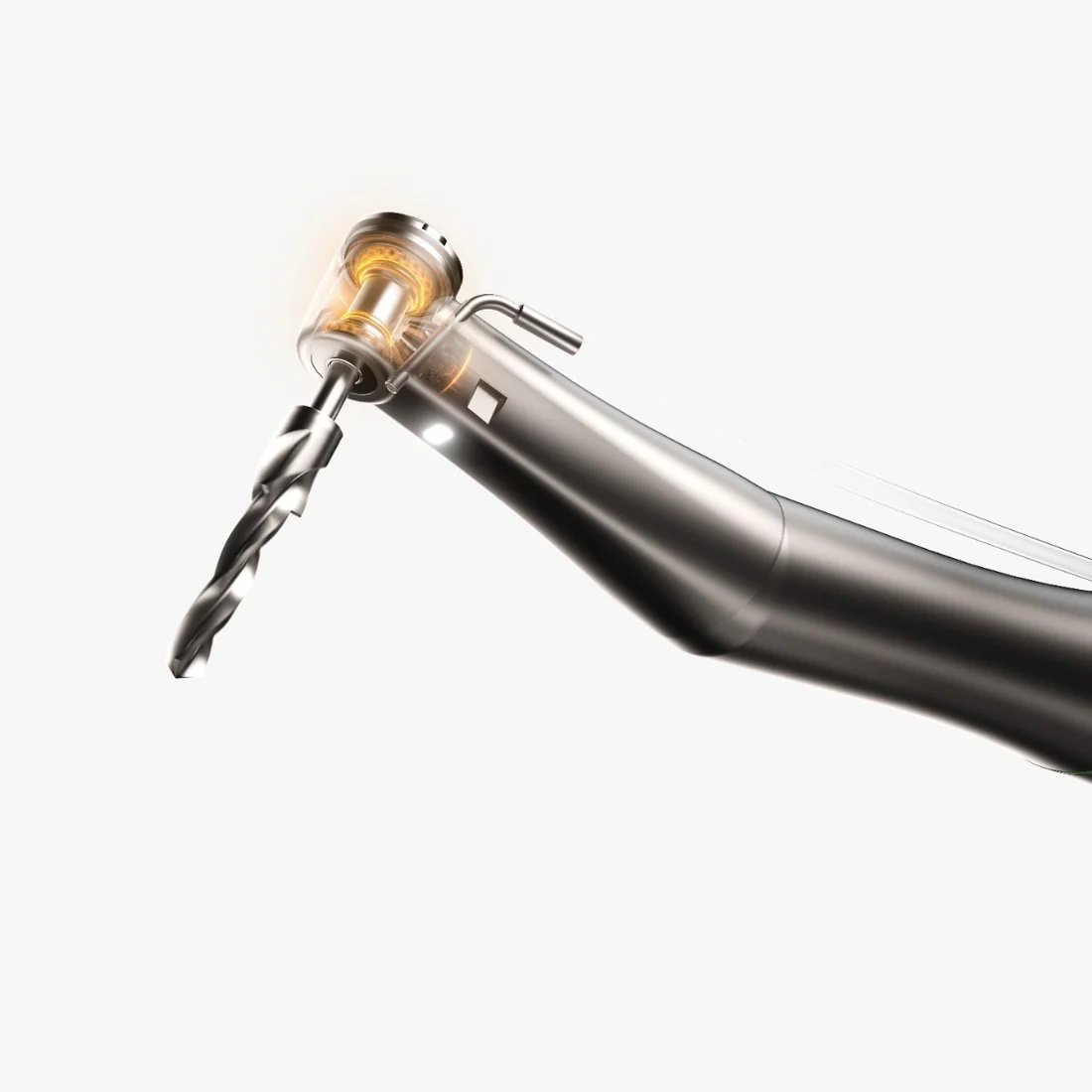

• Built-in LED provides clear illumination for improved surgical visibility

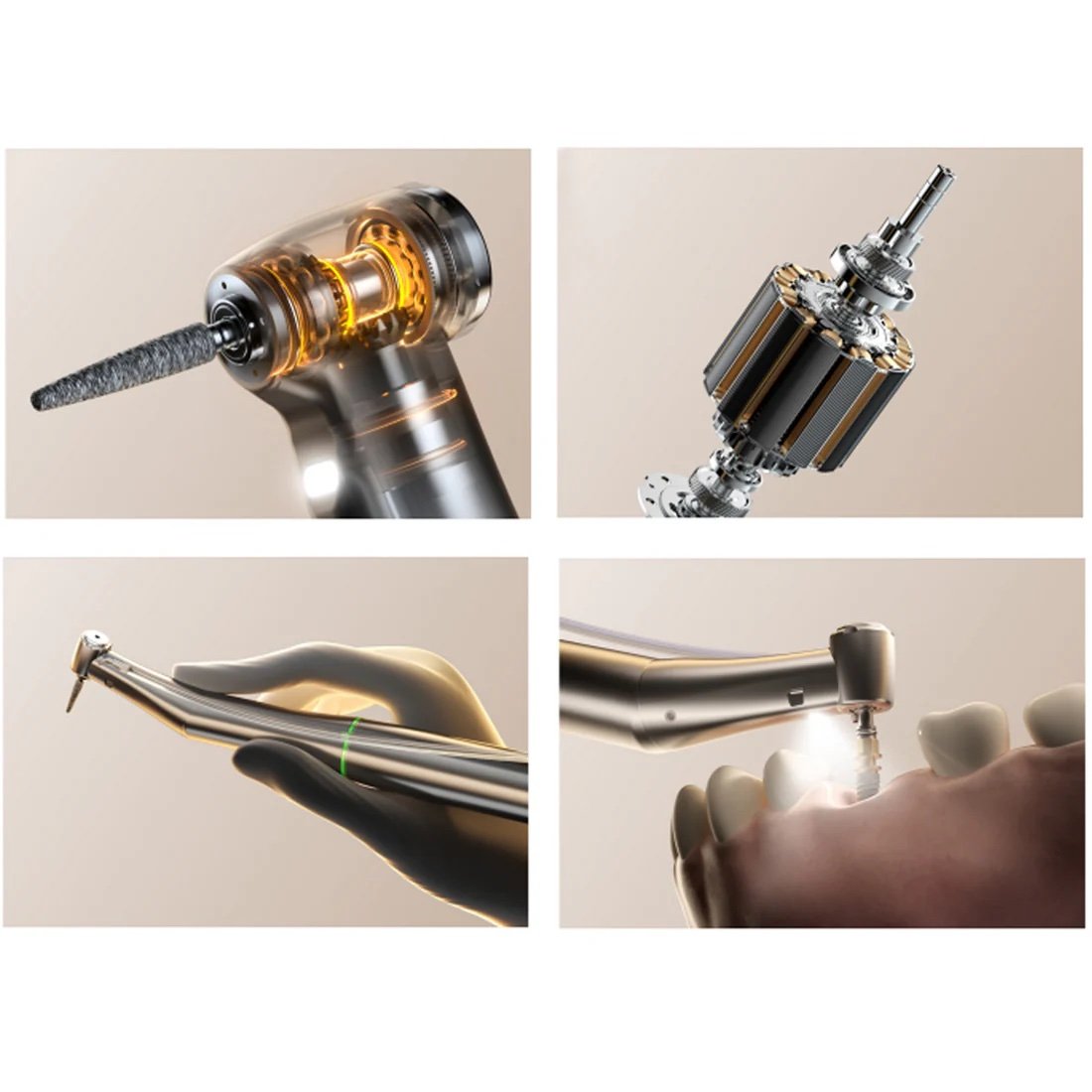

• Eight high-quality bearings ensure smooth rotation and long service life
• Stable torque delivery with minimal vibration for enhanced comfort
• Powerful motor supports torque output up to 80 Ncm

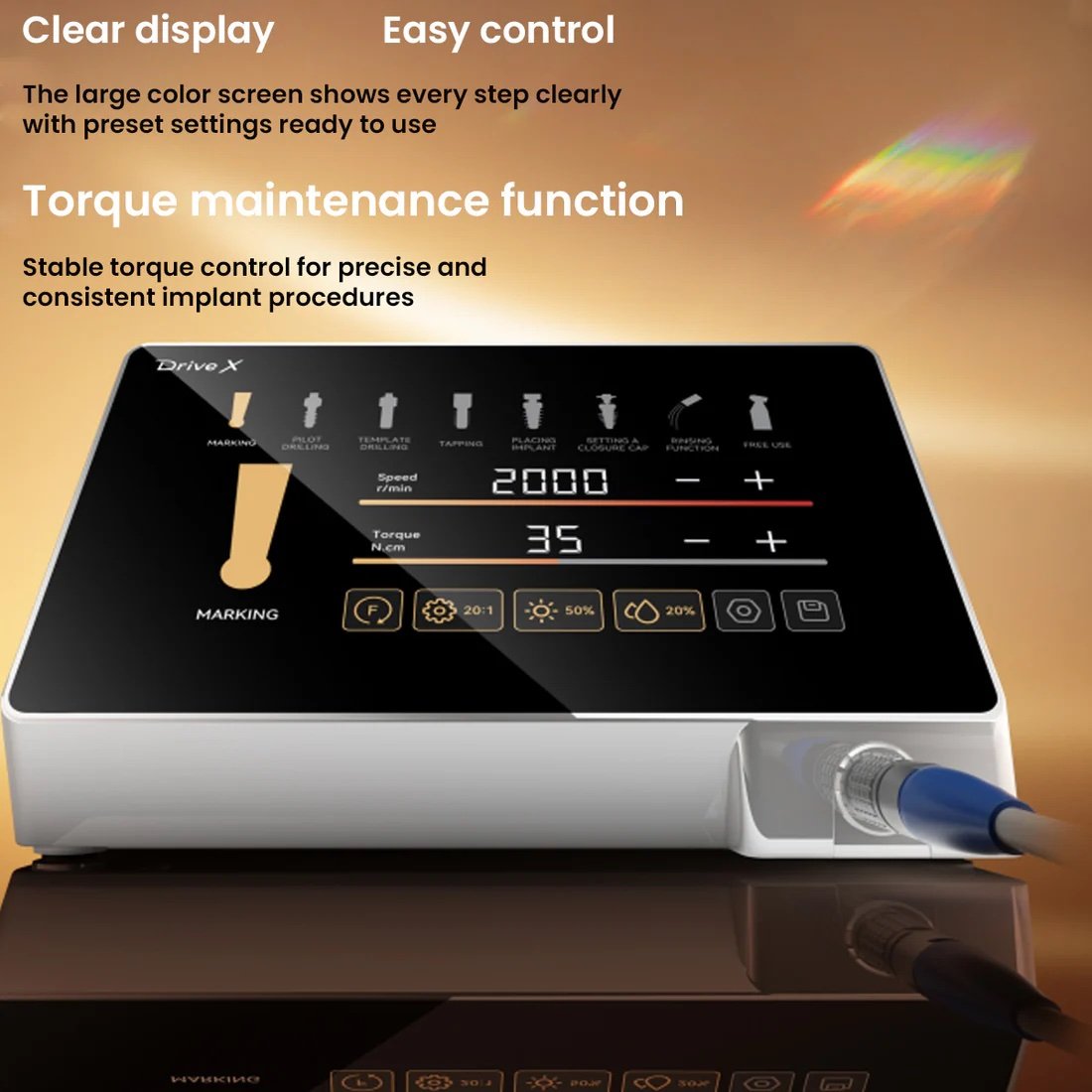

• Large color screen with easy-to-use preset programs
• Ensures consistent torque during implant procedures

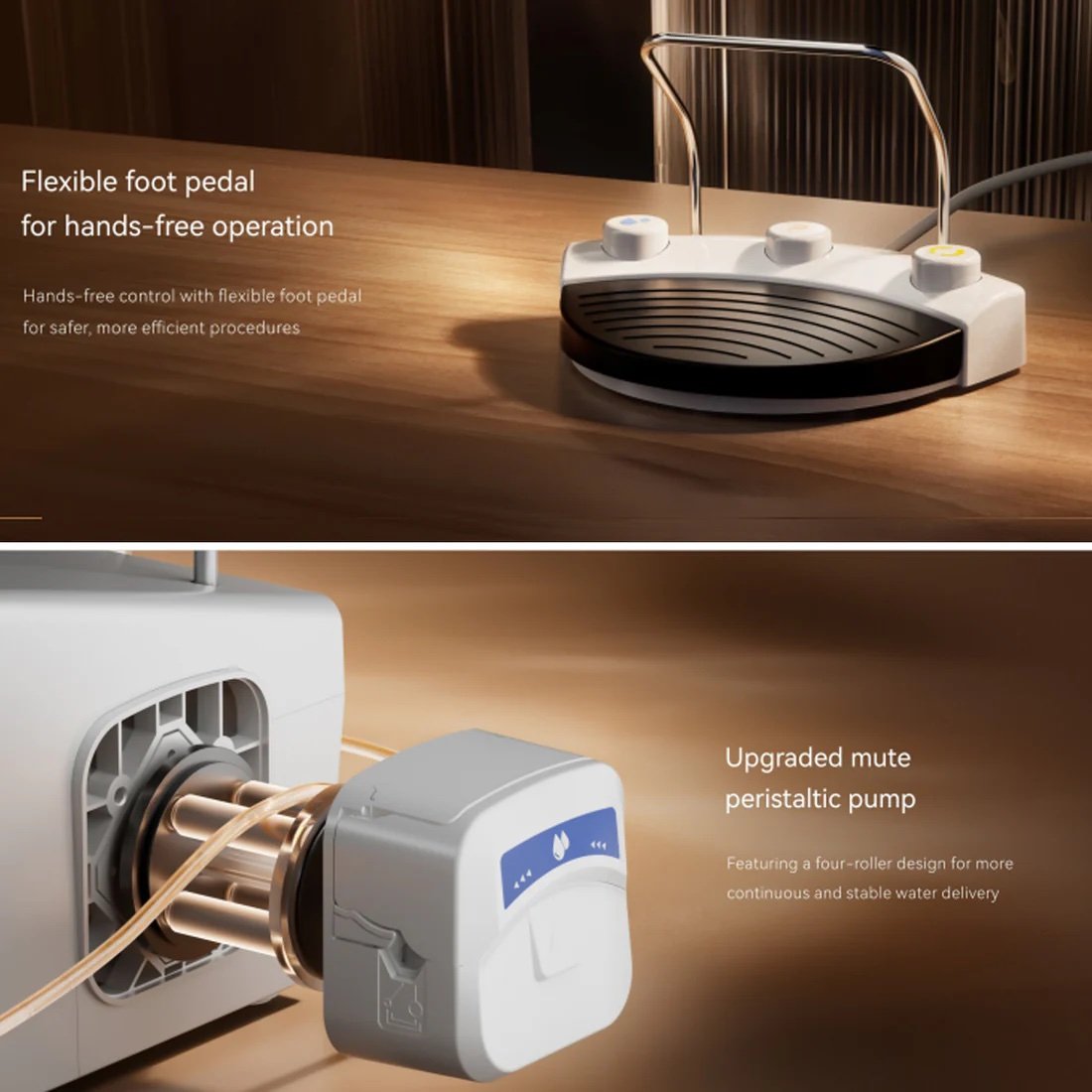

• Four-roller design enables stable and continuous irrigation flow

Key Specifications:

• Motor Type: Implant Motor
• Torque Range: 5–80 Ncm
• Motor Torque: 6.2 Ncm
• Max Pump Output: 110 mL/min

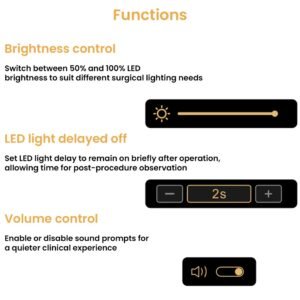

• LED Brightness: 50% / 100%
• Main Unit Size: 250 × 237 × 130 mm
• Motor Dimensions: 23.4 × 91 mm
• Motor Weight: 150 g
• Contra Angle Weight: 88.3 g
• Power Supply: AC 220V 50/60Hz

Packaging:

• 1 x Main unit
• 1 x Power cord
• 1 x Handpiece holder
• 4 x Disposable water pipe
• 1 x Infusion bottle holder
• 2 x Motor disinfection plug
• 10 x Pipe clamp
• 4 x 0-ring (Motor)
• 1 x Foot control
• 1 x Motor handpiece
• 1 x Contra-angle kit
• 2 x Spare fuse
• 1 x Instruction manual
• 1 x Qualified certificate

Warranty:

• Manufacturer/Importer warranty of 1 year as applicable for this product
