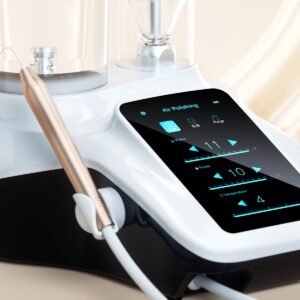

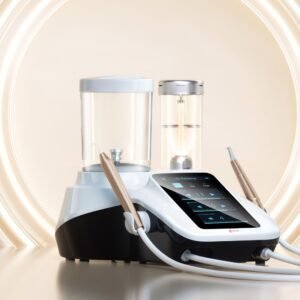

WOODPECKER PT-B Air Polisher System

PT-B

·Air polishing
·Ultrasonic restoration preparation
·Periodontal treatment
·Endodontic treatment
·Implant maintenance

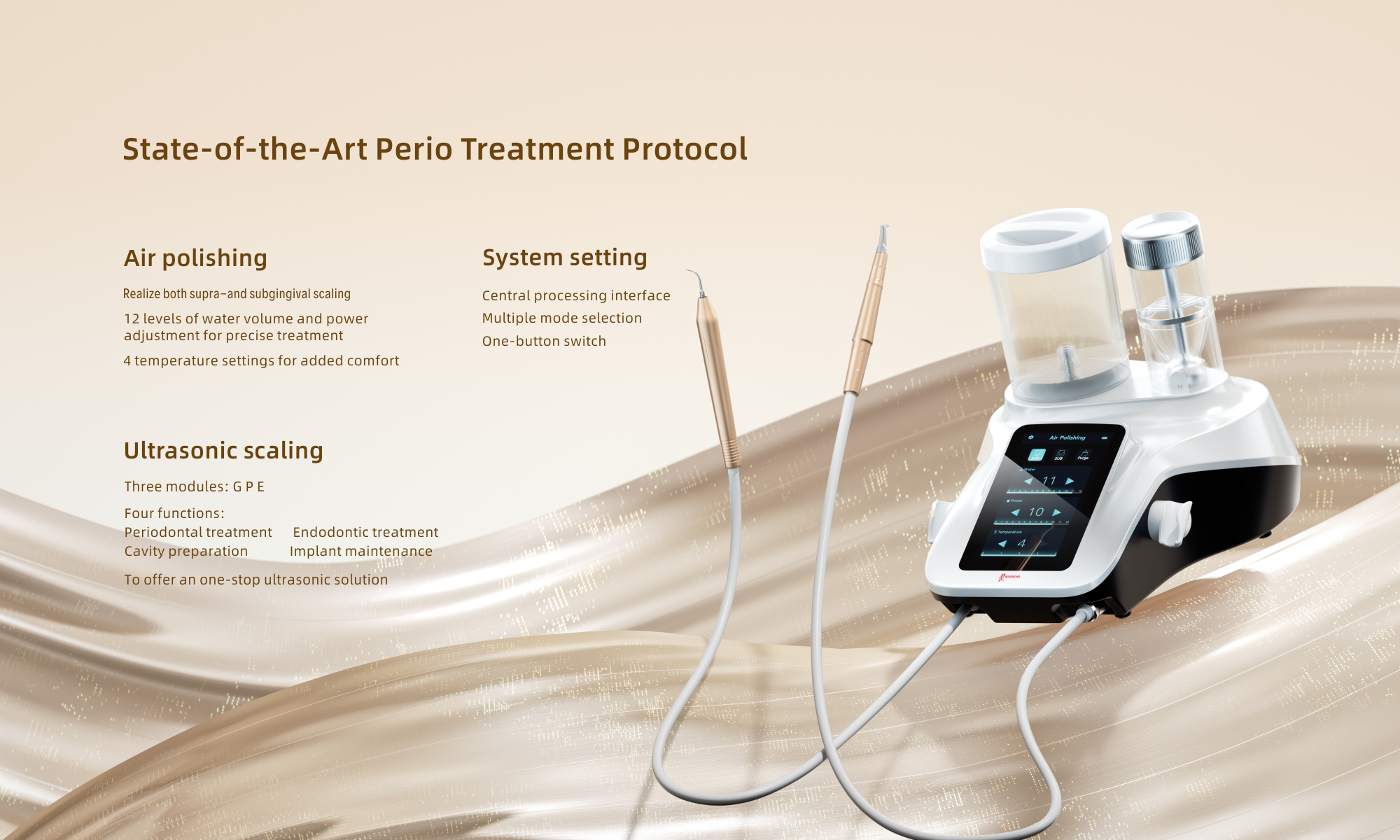

State-of-the-Art Perio Treatment Protocol

Air polishing
Realie both supra-and subgingival scaling
12 levels of water volume and power adjustment for precise treatment.4 temperature.settings for added comfort
System setting
Central processing interface.Multiple mode selection.One-button switch
Ultrasonic scaling
Three modules: GPE
Four functions: Periodontal treatment.Endodontic treatment.Cavity preparation
Implant maintenance: To offer an one-stop ultrasonic solution

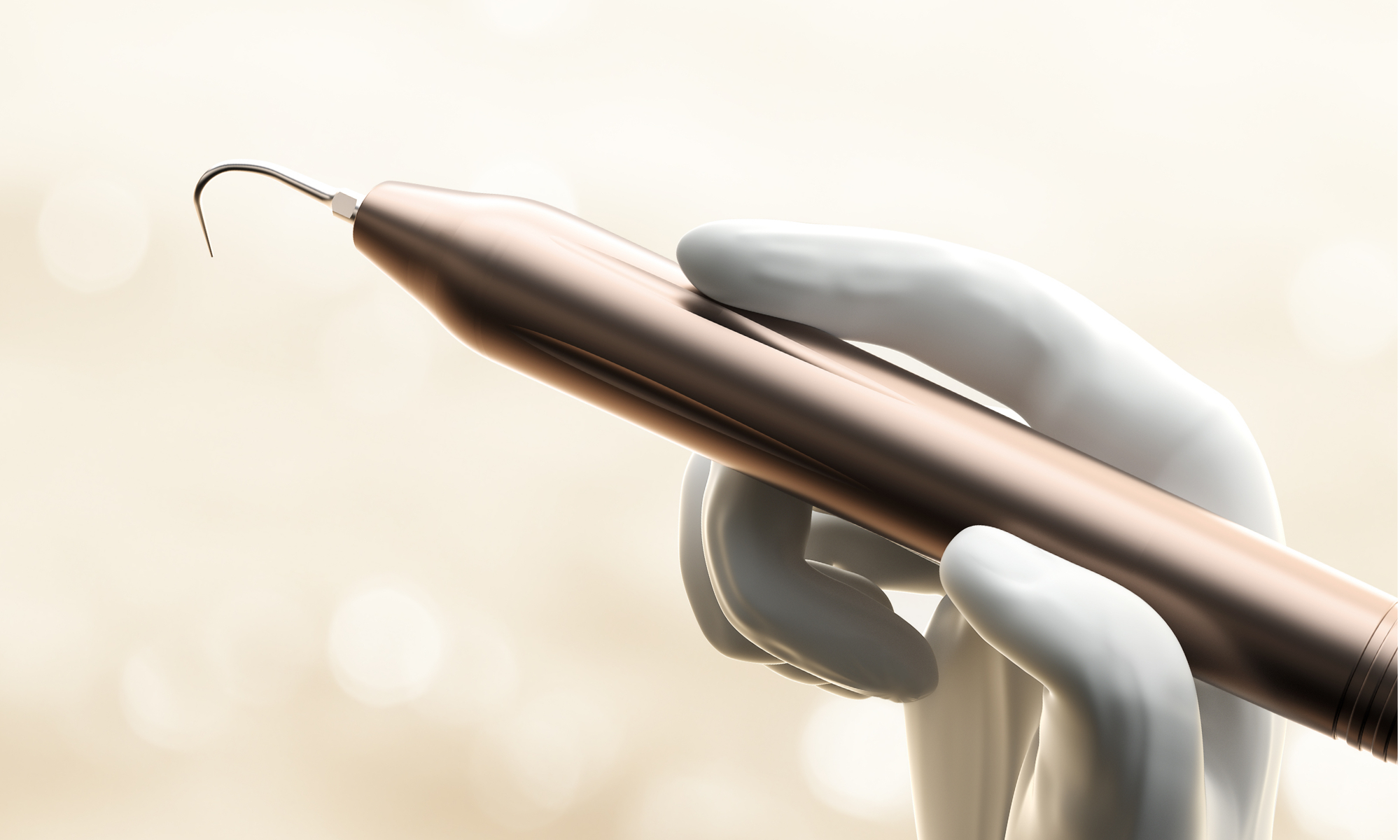

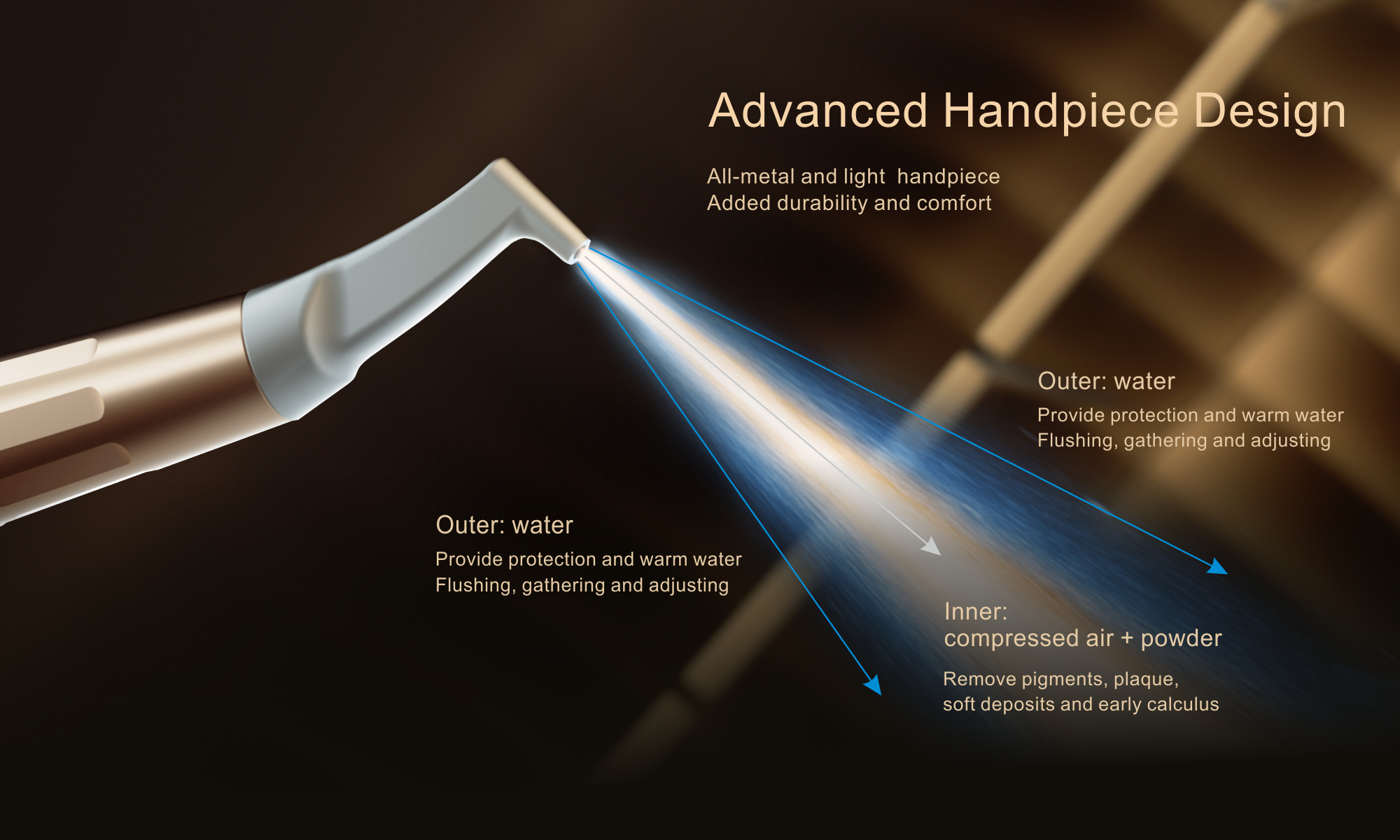

Advanced Handpiece Design

All-metal and light handpiece added durability and comfort
·Outer: water.
Provide protection and warm water.Flushing, gathering and adjusting
·Inner: compressed air + powder
Remove pigments, plaque, soft deposits and early calculus

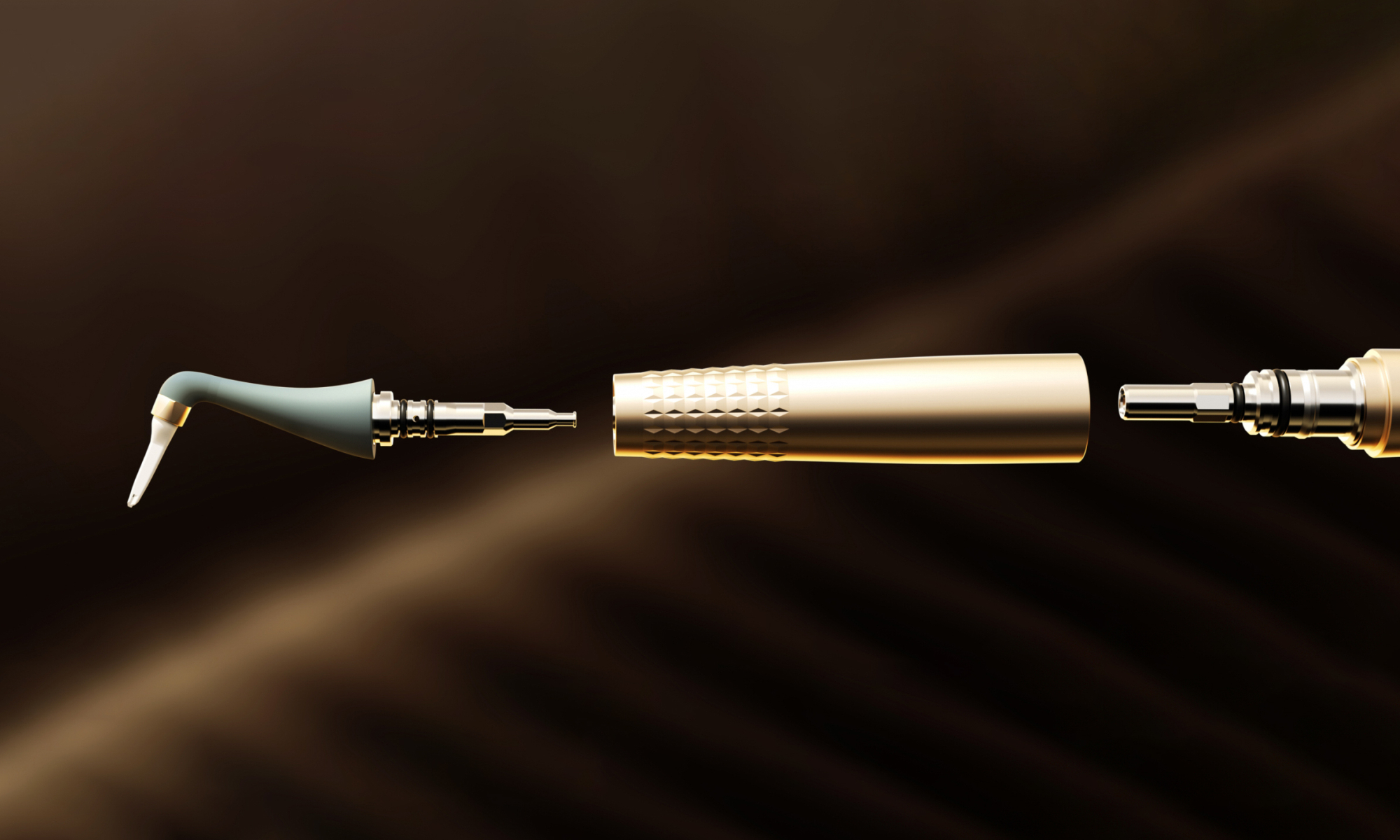

Three-section Detachable Handpiece, Easy For Unclogging And Cleaning

Supragingival Handpiece

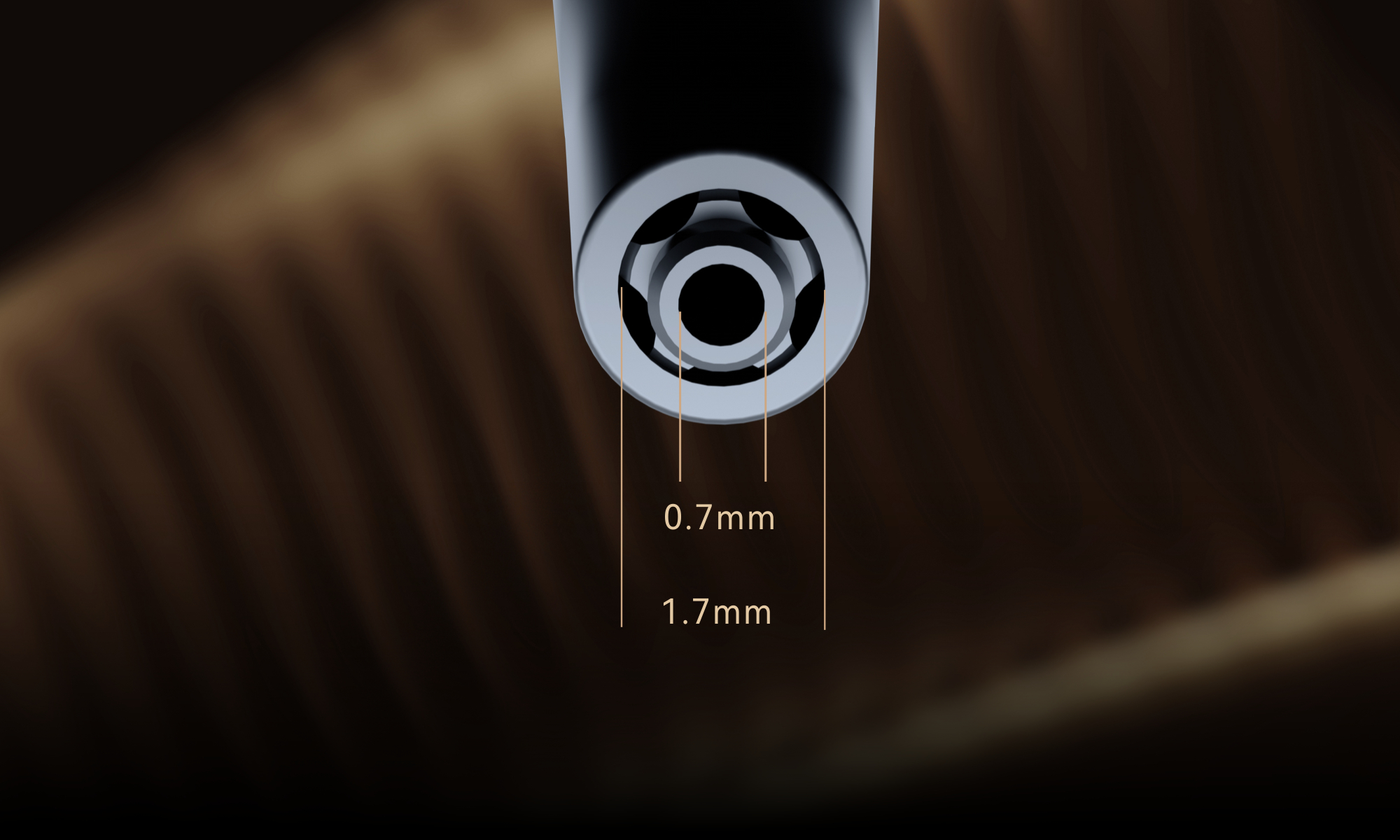

0.7 mm small calibre nozzle, more concentrated air polishing, more efficient scaling
High concentricity of air- water path wraps powder with water, minimizing powder scattering
Fluid dynamics simulation design enables soft energy release
No damage to soft tissue, nor scratch the tooth surface

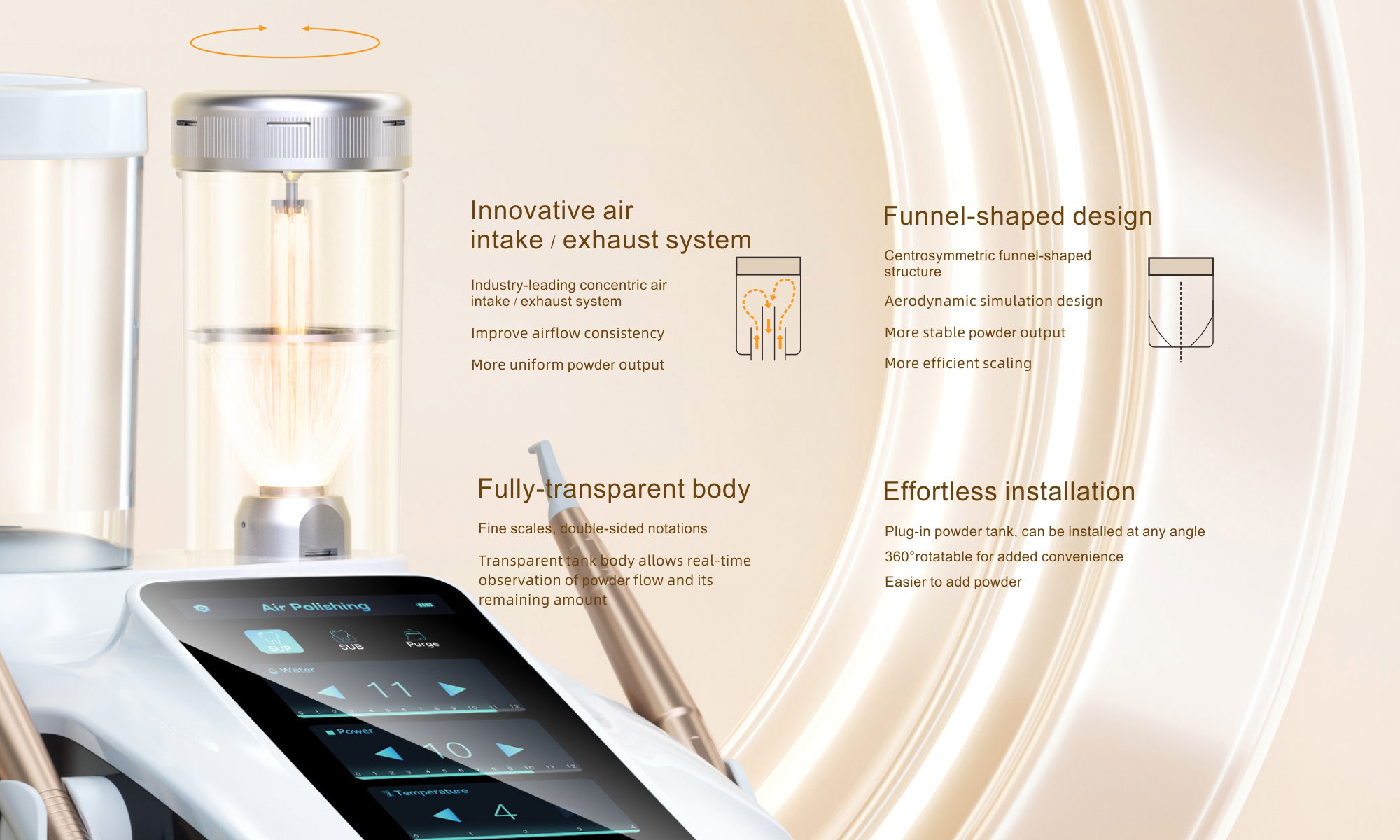

One-of-Kind Powder Tank

Innovative air intake/exhaust system
Industry-leading concentric air intake/ exhaust system improve airflow consistency more uniform powder output
Funnel-shaped design
Centrosymmetric funnel-shaped structure
Aerodynamic simulation design more stable powder output more efficient scaling
Fully-transparent body
Fine scales, double sided notations.Transparent tank body allows real-time observation of powder flow and its remaining amount
Effortless ins tallation
Plug-in powder tank, can be installd at any angle 360 rotatable for added convenienceeasier to add powder

Stunning Temperature Control System

300W high power
4 temperature settings: 25℃，30℃，35℃, 40℃
Realize high-efficiency automatic preheating, delivering a warm and comfortable treatment

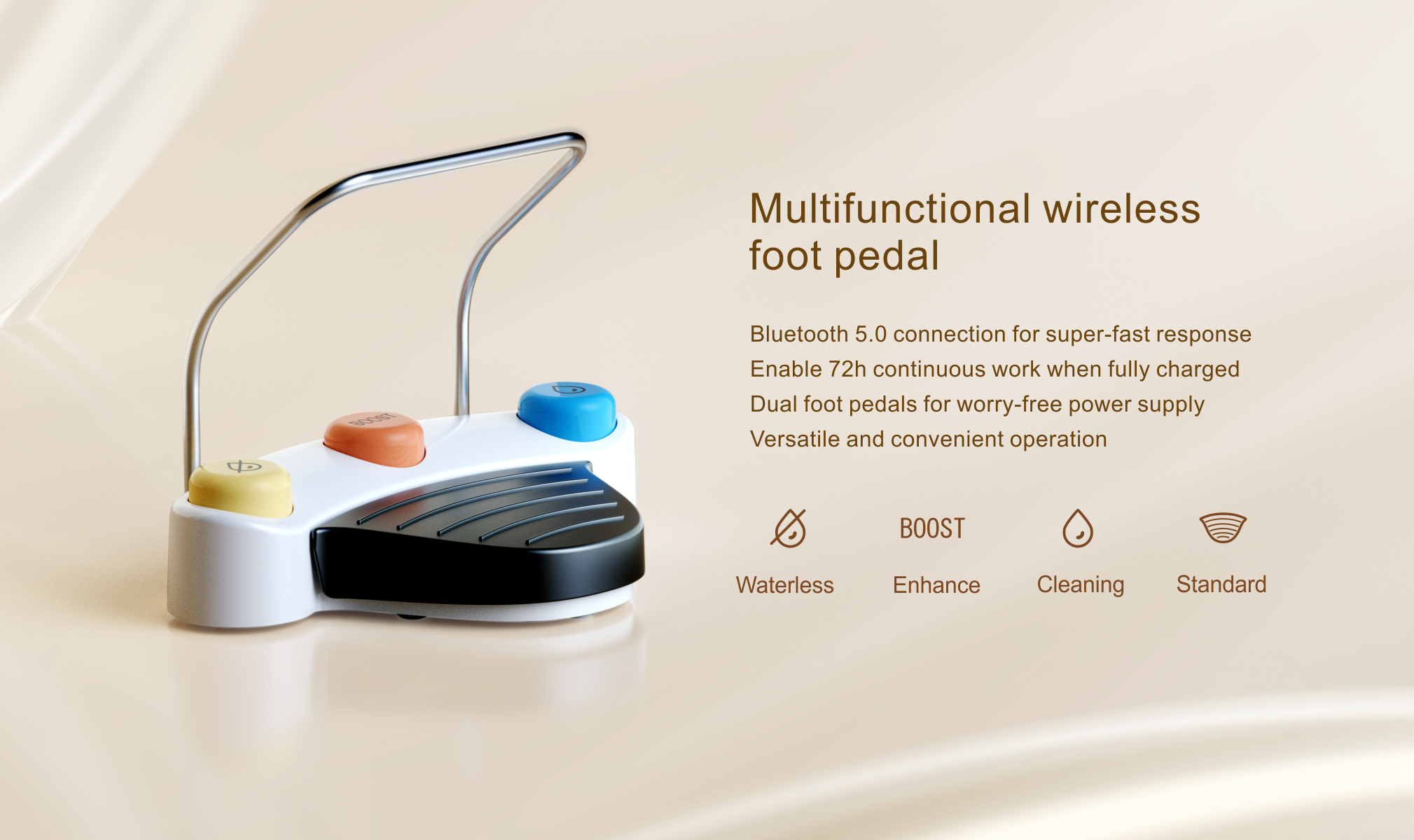

Multifunctional Wireless Foot Pedal

Bluetooth 5.0 connection for super-fast response.Enable 72 h continuous work when fully charged
Dual foot pedals for worry-free power supply.Versatile and convenient operation

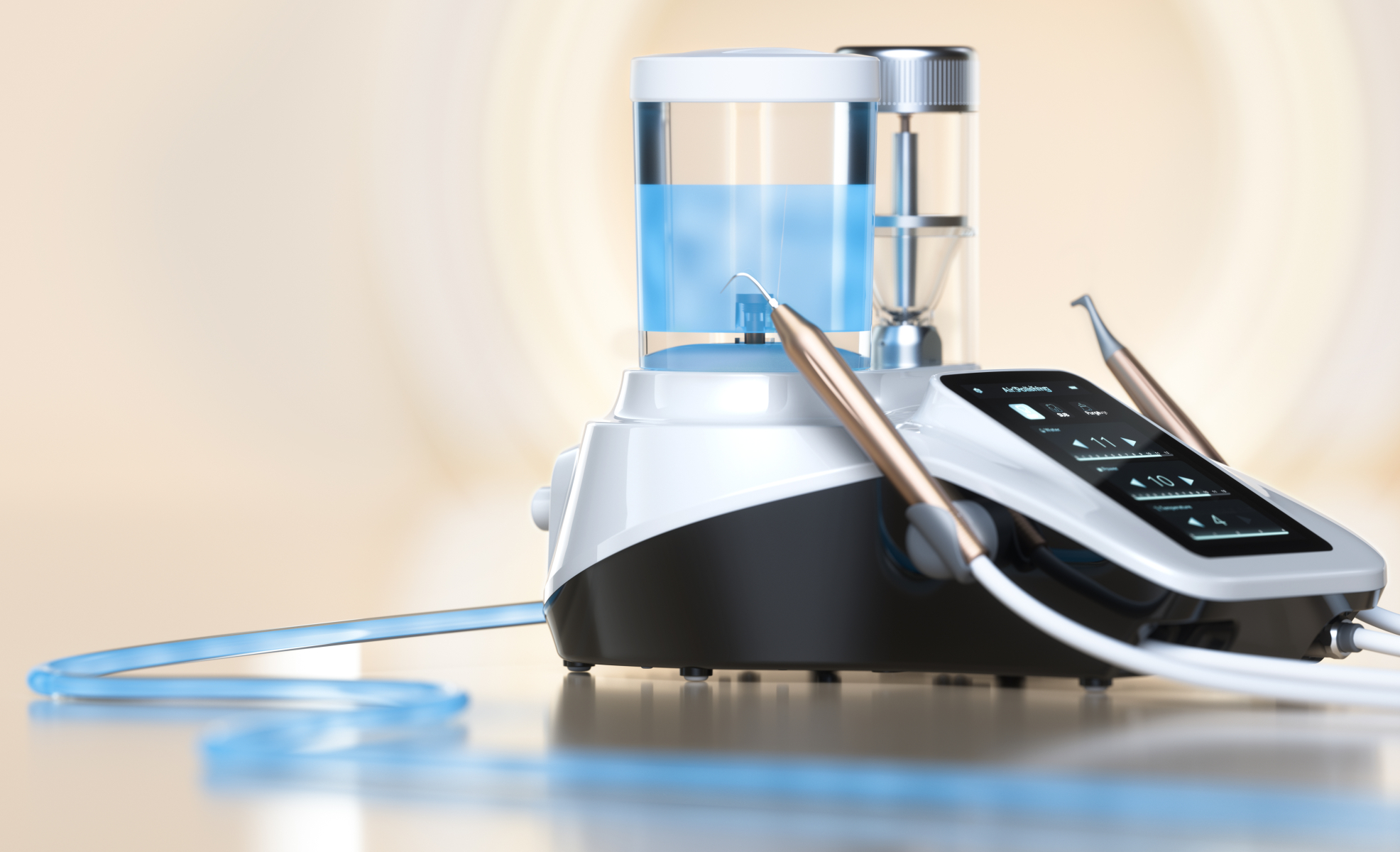

Dual Water Supply Systems

·System 1: Water through the dental unit
·System 2: Two water bottles (600mL,1 400mL),can hold specific solutions such as chlorhexidine,hydrogen peroxide, sodium hypochlorite, etc.
‘The clear scales on the bottle body for easy liquid medicine preparation

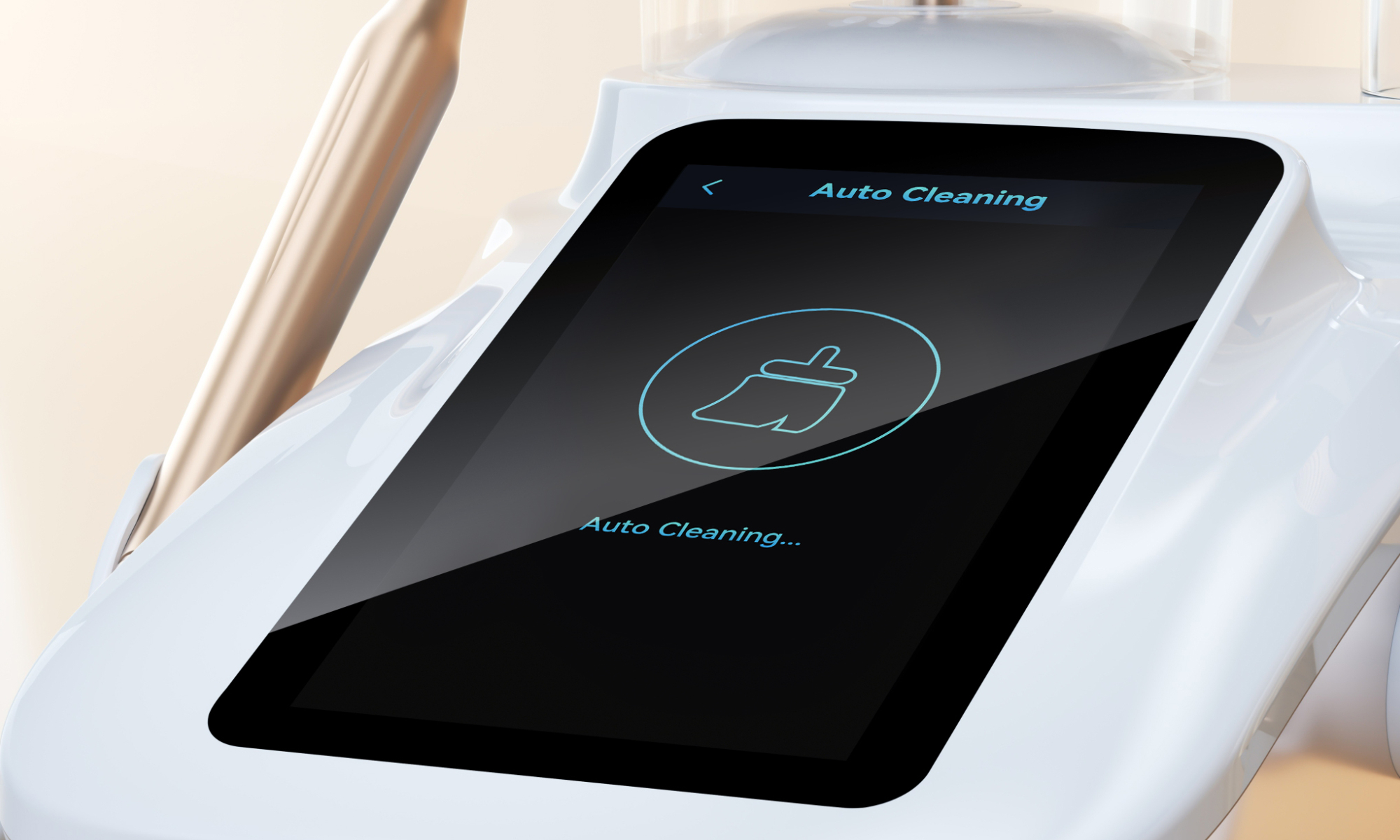

Automatic Tubing Cleaning

·Air polishing mode: 20 S to remove the residual powder in the tubing to avoid blockage
·Ultrasonic scaling mode: 30 S to flush away the residual liquid in the tubing to avoid corrosion
·Automatic cleaning after 5 min of inactivity

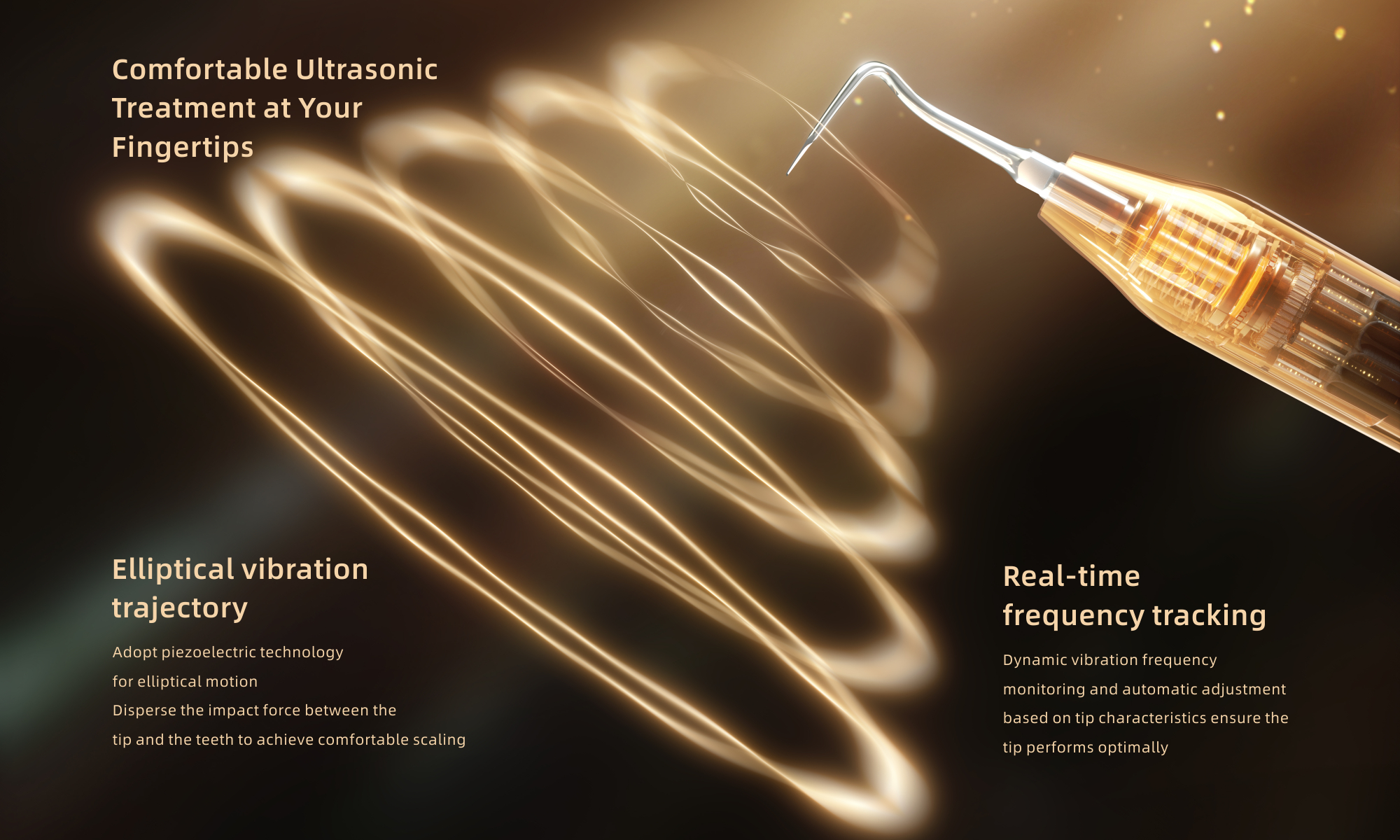

Comfortable Ultrasonic Treatment At Your Fingertips

Elliptical vibration trajectory
Adopt piezoelectric technology for elliptical motion
Disperse the impact force between the tip and the teeth to achieve comfortable scaling

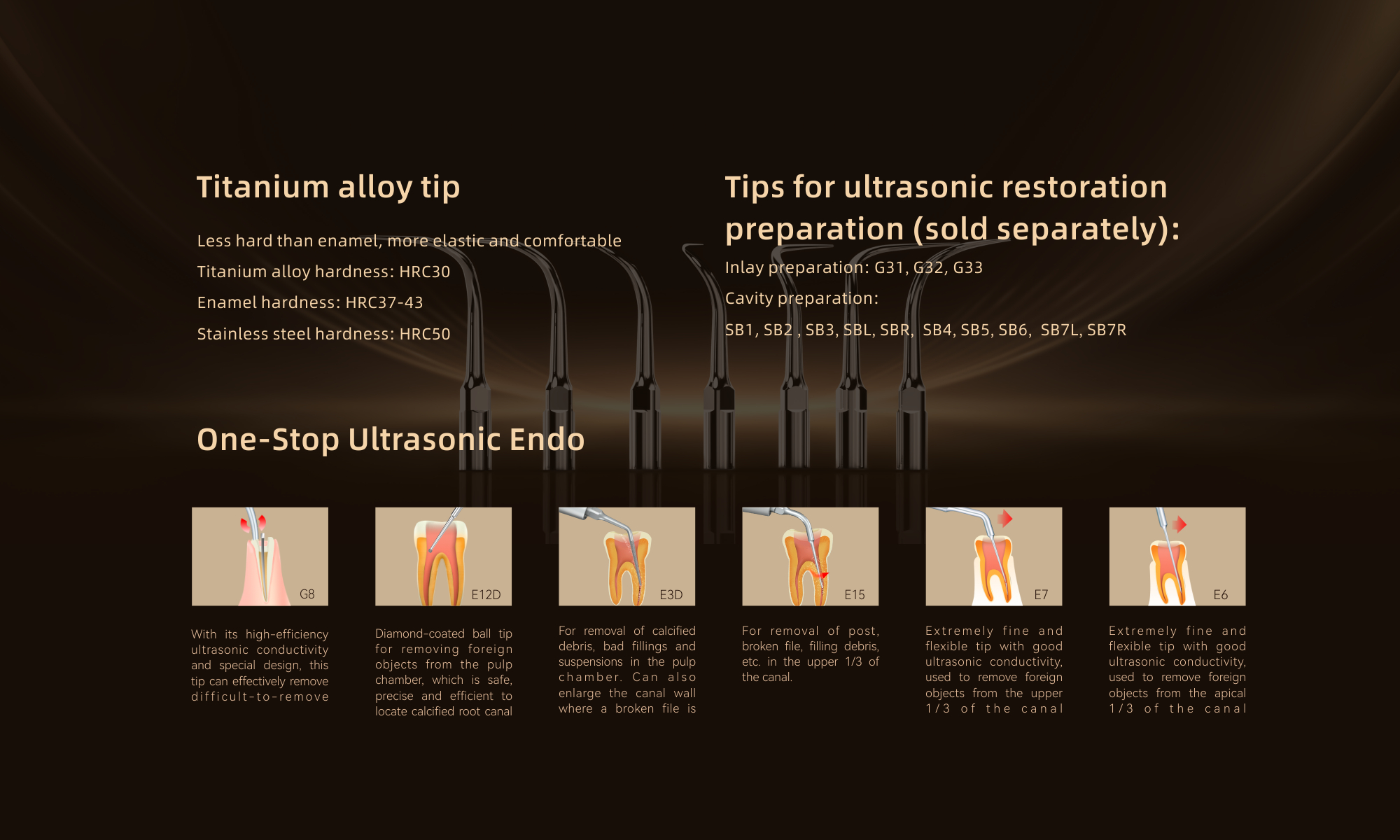

Titanium Alloy Tip

Less hard than enamel, more elastic and comfortable
Titanium alloy hardness: HRC30
Enamel hardness: HRC37-43
Stainless steel hardnesscHRC50
Tips for ultrasonic restoration
preparation (sold separately): Inlay preparation: G31, G32, G33
Cavity preparation: SB1, SB2, SB3, SBL, SBR, SB4, SB5，SB6, SB7L, SB7R

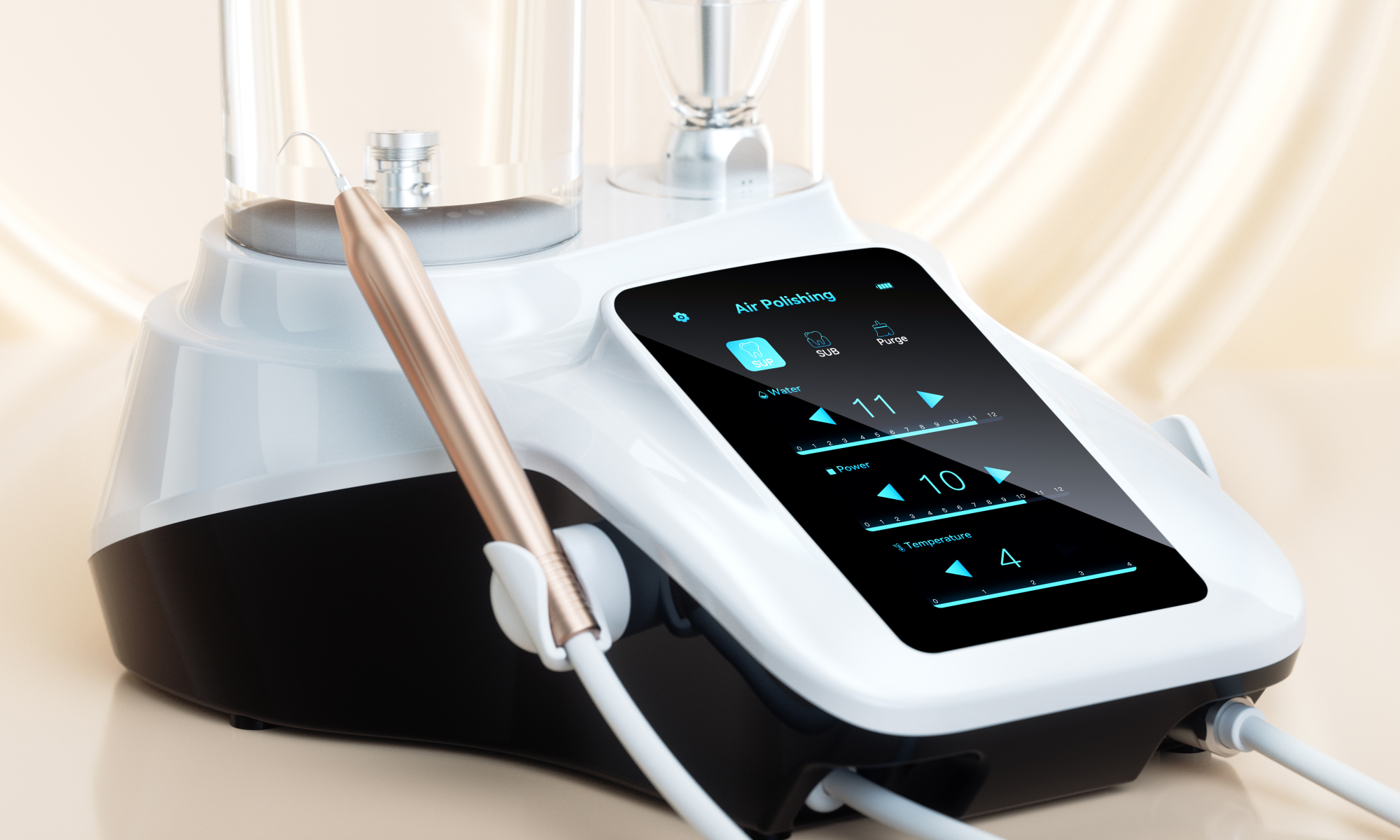

Ultra HD Screen For Clear Display

Automatic Identification Of Scaling Mode
